Expanded fast index creation¶

What fast index creation is¶

In InnoDB, secondary indexes are separate B-tree structures from the clustered index (the primary key). When the server creates a new secondary index on an existing table, the server can use two conceptually different approaches:

A. Row-by-row maintenance — For each row, insert its entries into the new secondary index as you go. These inserts arrive in primary-key order, not secondary-key order, causing many random page splits and high write amplification. If the server is copying the table (via a rebuild ALTER TABLE), the same pattern applies: every copied row must update every secondary index immediately.

B. Fast index creation (sorted / bulk build) — The server scans the table’s clustered index in primary-key order, generates secondary-key tuples, sorts them (often using external merge sort), and builds the secondary index from that ordered stream. Work is staged in temporary files under the configured tmpdir and then merged into a compact B-tree. This method avoids the worst random-insert behavior of the row-by-row approach and usually completes with less I/O and a less fragmented index.

So, fast index creation means building the secondary index from a sorted stream after reading the table (or a copy) in clustered index order, instead of growing the index with arbitrary-order inserts during the same phase as the data copy.

Why deferring secondary indexes can beat keeping them during a copy¶

On a table-copy ALTER TABLE, the expensive part is not dropping a secondary index definition. The benefit comes from what happens during row copying. If every secondary index stays live, each inserted row triggers incremental B-tree maintenance in several trees at once, ordered by the primary-key scan. This causes scattered leaf-page writes (random-like I/O) and many page splits. If eligible secondaries are absent during the copy and built afterward, the copy loop mainly touches the clustered index, which is a comparatively sequential read of the old table and write of the new clustered index. Each secondary is then produced by one scan-plus-merge-sort pipeline into tmpdir, then merged into a fresh B-tree. The architectural shift is incremental: interleaved updates rather than deferred bulk builds from sorted runs, not just a superficial reordering of DDL syntax.

Dropping an index is often a cheap metadata change. The performance gain mainly comes from creating indexes on large tables.

Technical comparison: physical handling during a table copy¶

The following applies only when InnoDB performs a full table rebuild (the copy algorithm), such as when ALTER TABLE operations materialize a new table and copy rows from the old one, for example, due to changes in column order or data type. InnoDB stores the clustered index (primary key / row body) and each secondary index as separate on-disk B-trees. The architectural question is when those B-trees are updated relative to the row copy.

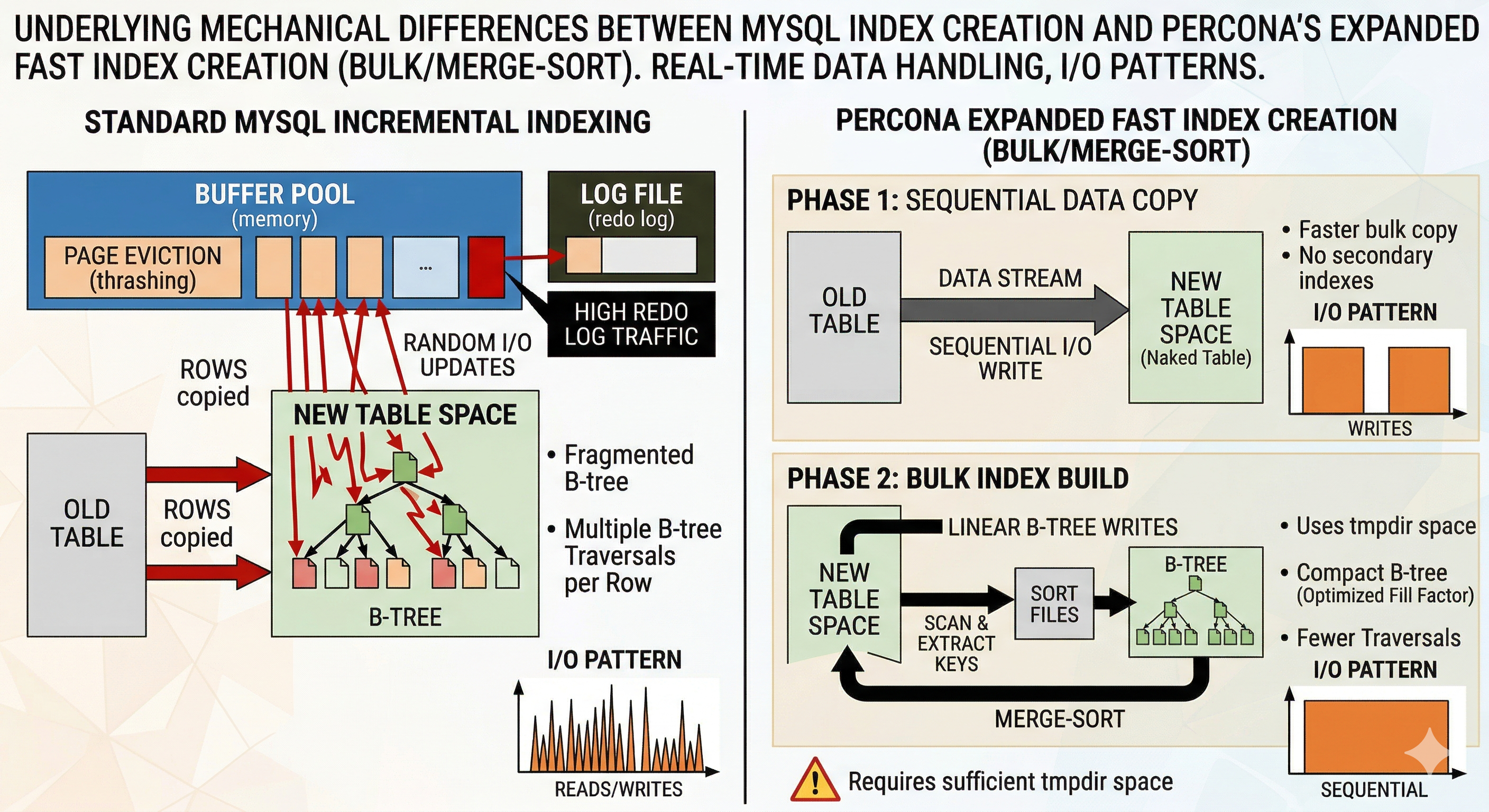

The diagram contrasts standard MySQL incremental indexing during a table copy with Percona’s expanded fast index creation. This involves a sequential copy into a table without eligible secondary indexes, followed by bulk merge-sort index builds using tmpdir.

Standard MySQL incremental B-tree updates versus Percona two-phase sequential copy and bulk merge-sort index build, I/O patterns, and tmpdir

Oracle MySQL Community Edition: incremental secondary indexes during the copy¶

On the copy path, Oracle MySQL Community Edition (Oracle MySQL 8.4) materializes a new InnoDB table to receive rows. This internal rebuild depends on the statement, but the engine copies from the old clustered index into a new on-disk structure. The new table is created with all secondary index definitions already in place. For each row read from the old table, the server inserts it into the new clustered index and immediately applies all secondary index changes required for that row, performing incremental maintenance of every live secondary B-tree.

Physically, those per-row secondary index updates behave like many small, interleaved B-tree inserts. Secondary-key values do not appear in secondary-key order but follow primary-key scan order, so the engine touches many different leaf pages over time. In practice, this produces:

Heavy random (or scattered) I/O across secondary index B-trees, because each row can require updates to several trees at unrelated leaf positions.
Higher fragmentation in the new secondary indexes: repeated inserts in non-ideal key order cause page splits, partially filled pages, and more structural churn than a single bulk build.

The clustered index still grows in primary-key order during the scan, but the secondary structures are “grown” incrementally alongside every row.

Percona Server: two-phase copy (bulk / merge-sort secondary builds)¶

When expand_fast_index_creation is enabled and the optimization applies, Percona Server replaces the single interleaved loop with two phases on the same copy-style DDL path.

Phase 1: sequential clustered data copy (no eligible secondaries)¶

Eligible non-unique secondary indexes are not present or maintained while rows are copied into the new table. The engine performs a sequential, primary-key-ordered read of the old clustered index and writes the new clustered index without maintaining deferred secondaries row by row. In storage terms, the hot path is dominated by moving the clustered row payload in key order rather than fanning every row out into several B-trees at once.

Phase 2: bulk secondary index build (merge-sort via `tmpdir`)¶

After the last row is in place, the server builds each deferred secondary index in its own pass. It scans the new clustered index in primary-key order, emits secondary-key tuples, sorts them (typically external merge sort with runs staged undertmpdir), merges into a single ordered stream, and allocates and fills a new secondary B-tree from that stream. This is the same family of mechanics as InnoDB’s “fast index creation” (sorted bulk build), but applied after the clustered table body exists instead of interleaving random-order secondary inserts with every row of the copy.

Effects at the storage layer:

The copy loop avoids the worst random-like secondary-index churn of the Community approach; heavy secondary work is concentrated in predictable scan/sort/merge passes.
Secondary indexes are typically more compact and incur less incremental fragmentation from the copy phase than indexes grown row-by-row during the copy, because pages are filled from sorted runs. The trees are not guaranteed “perfect” or free of all splits forever—normal DML afterward still mutates them—but the initial build avoids the split storm tied to interleaved inserts.

The tradeoff is large temporary space under tmpdir for sort/merge files, as described in tmpdir, disk space, and recovery.

Technical comparison summary¶

Technical aspect	Oracle MySQL (Community)	Percona Server (expanded, optimization applies)
Index update strategy	Incremental: each copied row updates every live secondary index	Bulk (post-copy): eligible non-unique secondaries built after clustered data is complete
I/O pattern during copy	Random-like / scattered writes across many secondary B-tree leaves	Sequential clustered scan for the row copy; secondary work shifted to separate scan/sort/merge passes
Merge-sort use (`tmpdir`)	Little or none for maintaining secondaries during the interleaved copy; secondaries grow by per-row insertion	Extensive: external merge sort and merge passes for each deferred secondary index build
Index quality after DDL	Often more fragmented from row-by-row growth and splits during copy	Typically more compact; avoids the incremental split behavior tied to the copy loop
`mysqldump` restore shape	Secondary definitions in `CREATE TABLE`; indexes maintained during data load	With `--innodb-optimize-keys`, keys omitted from `CREATE TABLE` and added via trailing `ALTER TABLE` after load (mysqldump –innodb-optimize-keys and dump file structure)
Temporary disk (`tmpdir`)	Lower demand from the incremental copy pattern alone	High: sort runs and merges for each rebuilt secondary index

mysqldump –innodb-optimize-keys and dump file structure¶

Standard Oracle mysqldump emits CREATE TABLE for an InnoDB table with all KEY, UNIQUE KEY, and relevant CONSTRAINT clauses inline. During restore, the server must maintain those secondary structures while rows stream in using the same incremental pattern as a copy-style DDL workload.

Percona’s mysqldump --innodb-optimize-keys rewrites the logical SQL in the dump file. For InnoDB tables, the tool omits secondary key and related clauses from CREATE TABLE and emits one or more trailing ALTER TABLE statements that add those keys after most data has loaded. This forces a data-first, indexes-later restore so the server can build secondaries using the sorted bulk path. It also allows Percona Server to apply expanded fast index creation on those post-load alters when the variable is on. Details and restrictions remain in the mysqldump command.

I/O pattern overview¶

During the copy loop:

Oracle MySQL Community: read one row → insert into clustered index → update every secondary B-tree for that row → repeat until done.
Percona Server (expanded): read one row → insert into clustered index only (eligible secondaries not maintained in that loop) → repeat until done. Then, for each deferred secondary index, scan the clustered index, sort, merge from tmpdir, attach the new B-tree.

How expanded fast index creation differs from Oracle MySQL¶

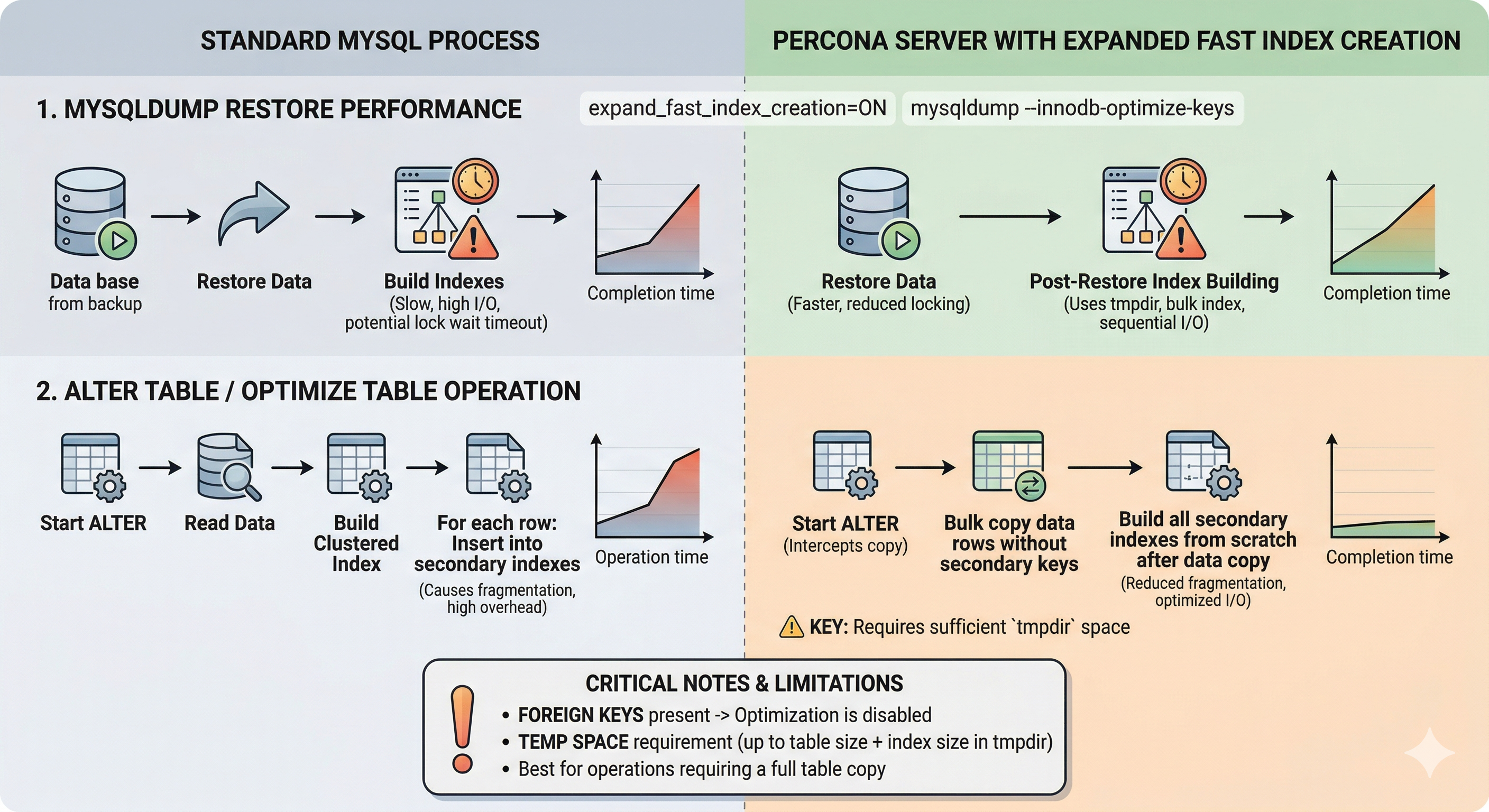

This section includes a comparison graphic that summarizes end-to-end behavior (including restore). For the on-disk and I/O model in depth, see Technical comparison: physical handling during a table copy.

The following compares Percona Server for MySQL with Oracle MySQL 8.4 on code paths that rebuild the table. InnoDB classifies each ALTER TABLE operation by algorithm (INSTANT, INPLACE, COPY, and so on). These classifications can change between releases, so treat the InnoDB online DDL documentation as authoritative for whether a specific statement performs a copy in your version.

Upstream MySQL (InnoDB) already uses a sorted, bulk-style path when MySQL adds a secondary index in operations that are implemented as “add index only” (for example, some CREATE INDEX / ALTER TABLE ... ADD INDEX flows that do not rebuild the whole table).

Where Oracle MySQL still does a full table rebuild (copy algorithm, for example, some ALTER TABLE changes that force a new table), rows are inserted into the new copy while all secondary indexes remain live. Each insert must update every non-primary index in a single operation. Even if the server later uses efficient index-building mechanisms, interleaving those updates with the copy keeps more indexes “hot” throughout the copy and tends to produce heavier random I/O and more fragmented trees than deferring secondary index creation until the clustered data is complete.

Percona Server for MySQL extends that behavior with expanded fast index creation (controlled by expand_fast_index_creation). On rebuild-style ALTER TABLE or OPTIMIZE TABLE, eligible non-unique secondary indexes are dropped for the copy phase and recreated afterward using the fast sorted-build path on the finished table. The copy phase then maintains only what InnoDB requires for the clustered index and any indexes that cannot be deferred. This behavior is the main difference between Oracle MySQL on the same code paths.

Oracle MySQL 8.4 can apply INSTANT or in-place (INPLACE) DDL to many ALTER TABLE operations, so the server avoids a full table copy or keeps work inside the existing InnoDB file. That path is separate from the rebuild logic expand_fast_index_creation augmentations; there is no interaction to “tune” for those statements.

When the expanded fast index creation optimization applies¶

`INSTANT`, `INPLACE`, and why the `expand_fast_index_creation` variable usually does not matter for those algorithms¶

If an ALTER TABLE runs as INSTANT (for example, adding a nullable column at the end of the table when supported) or as an online in-place operation that does not rebuild the whole table, the server is not performing a full table copy that Percona optimizes. In those cases expand_fast_index_creation is generally unnecessary: the expensive secondary index pattern that expanded fast index creation improves simply is not used in the same way.

When `expand_fast_index_creation` helps¶

expand_fast_index_creation is most beneficial when the operation requires a table copy—for example changing a column’s data type in a way that forces a rebuild, or other alters classified with the copy algorithm. On that path, Percona Server intercepts the copy so eligible non-unique secondary indexes are rebuilt with the sorted temporary-file workflow instead of being maintained on every inserted row during the copy.

Expanded fast index creation only affects statements that rebuild the table and copy rows into a new InnoDB table. Typical cases include:

OPTIMIZE TABLE on an InnoDB table (internally ALTER TABLE ... ENGINE=InnoDB)
ALTER TABLE operations that the server implements with a table rebuild and the copy algorithm, as listed in the InnoDB online DDL operations table
An ALTER TABLE where you explicitly request ALGORITHM=COPY (when that algorithm is permitted for the operation)

Routine schema changes that stay on INSTANT or INPLACE never enter the table-copy rebuild path and are unaffected by expand_fast_index_creation.

Verify and monitor¶

Check whether expanded fast index creation is enabled:
```
SHOW VARIABLES LIKE 'expand_fast_index_creation';
```
In Percona Server for MySQL 8.4 the default is OFF. Enable expand_fast_index_creation for a session or globally before running DDL, for example SET SESSION expand_fast_index_creation = ON;.
To see how MySQL classifies a specific ALTER TABLE, use the online DDL documentation for your version. For which statements perform a table copy (where expanded fast index creation matters), see When the expanded fast index creation optimization applies. There is no single EXPLAIN for DDL; classification is per operation and version.
tmpdir free space is the usual operational bottleneck; see tmpdir, disk space, and recovery for how large tmpdir must be and what happens when tmpdir space is exhausted.

Besides shortening DDL directly, expand_fast_index_creation may also help subsequent DML because indexes built in one sorted pass are often less fragmented than those maintained incrementally through a long copy.

The mysqldump command¶

For how the dump file is structured (omitted KEY clauses and trailing ALTER TABLE), see mysqldump –innodb-optimize-keys and dump file structure under Technical comparison.

The --innodb-optimize-keys option changes the way InnoDB tables are dumped, so that secondary and foreign keys are created after loading the data, thus taking advantage of fast index creation. More specifically:

KEY, UNIQUE KEY, and CONSTRAINT clauses are omitted from CREATE TABLE statements corresponding to InnoDB tables.
An additional ALTER TABLE is issued after dumping the data, in order to create the previously omitted keys.

`ALTER TABLE`¶

When ALTER TABLE requires a table copy, secondary keys are dropped and recreated later, after copying the data. The following restrictions apply:

Only non-unique keys can be involved in the expanded fast index creation optimization.
If the table contains foreign keys, or a foreign key is being added as a part of the current ALTER TABLE statement, the expanded fast index creation optimization is disabled for all keys.
If the table is partitioned, the expanded fast index creation optimization is disabled for all keys.

`OPTIMIZE TABLE`¶

Internally, OPTIMIZE TABLE is mapped to ALTER TABLE ... ENGINE=innodb for InnoDB tables. As a consequence, OPTIMIZE TABLE also benefits from fast index creation when expand_fast_index_creation is enabled and the expanded fast index creation optimization applies, with the same restrictions as for ALTER TABLE.

`tmpdir`, disk space, and recovery¶

In practice, expanded fast index creation usually fails because the filesystem used for tmpdir (often the same mount as /tmp) runs out of disk space.

With expanded fast index creation enabled, the server reduces index maintenance memory costs but also materializes each secondary index in temporary files (sorted runs and merge passes). It then merges the result into the final InnoDB index. This can consume much more transient space than a rough “indexes fit in the tablespace” estimate suggests.

When planning free space for tmpdir, use the secondary indexes being rebuilt as the starting point, not just the table’s row data size. The merge-sort build writes temporary sorted runs to tmpdir before the final B-tree exists on disk. Peak usage is usually much higher than the finished indexes alone. Reserve more free tmpdir space than those indexes will occupy when done, and add an extra margin because the same ALTER TABLE or OPTIMIZE TABLE can use additional temporary files for the table copy.

Example: aExample: a table with about 500 GB of data and 200 GB of secondary indexes can need well over 200 GB of free tmpdir space while those indexes are being built, not just 200 GB as a safe cap.isk that holds tmpdir runs out of free space while the ALTER TABLE, OPTIMIZE TABLE, or related index-build step is still running, the statement fails and rolls back. You lose the work completed up to that point.

Before you run the same statement again, fix the space problem. Typical options:

Make more free space on the filesystem tmpdir uses by removing unrelated files, rotating logs, or growing the underlying disk or volume. This allows the merge-sort runs and any copy-side temporary files to complete. This operation keeps the configuration unchanged.
Redirect tmpdir to a directory on a different mount point with sufficient free space, such as a dedicated fast disk for database temp work. Set the tmpdir server variable according to the MySQL Reference Manual for your version, including scope, restart requirements, and secure path permissions. Until tmpdir points to adequate space, the same DDL is likely to fail again at the same stage.
Disable expanded fast index creation for the retry, for example, SET SESSION expand_fast_index_creation = OFF before ALTER TABLE, OPTIMIZE TABLE, or the post-load ALTER TABLE from a restore. The server then falls back to the stock interleaved pattern on copy-style DDL (see Technical comparison: physical handling during a table copy). This path usually needs less peak tmpdir space for the sorted secondary-index build because the bulk merge-sort path is not used. However, the operation can take longer and leave more fragmented secondary indexes. It does not remove all temporary space needs: a full table copy can still create large temporary files elsewhere.

Limitations¶

The following lists cases when the expanded fast index creation optimization is not applicable, or when the variable cannot change behavior (aside from tmpdir sizing and failures).

ALTER TABLE that runs as INSTANT or INPLACE without a full table rebuild never enters the table-copy path that expanded fast index creation changes, so the variable setting has no effect. That is a matter of scope (the feature is inert on those paths), not the same kind of restriction as the following bullets. For the full explanation, see When the expanded fast index creation optimization applies (opening subsection on INSTANT and INPLACE).
UNIQUE indexes in ALTER TABLE are ignored to enforce uniqueness where necessary when copying the data to a temporary table;
ALTER TABLE and OPTIMIZE TABLE always process tables containing foreign keys as if expand_fast_index_creation is OFF to avoid dropping keys that are part of a FOREIGN KEY constraint;
ALTER TABLE and OPTIMIZE TABLE always process partitioned tables as if expand_fast_index_creation is OFF;
mysqldump –innodb-optimize-keys ignores foreign keys because InnoDB requires a full table rebuild on foreign key changes. So adding foreign keys back with a separate ALTER TABLE after restoring the data from a dump would actually make the restore slower;
mysqldump –innodb-optimize-keys ignores indexes on AUTO_INCREMENT columns, because those columns must be indexed, so temporarily dropping the corresponding index is impossible;
mysqldump –innodb-optimize-keys ignores the first UNIQUE index on non-nullable columns when the table has no PRIMARY KEY defined, because in that layout InnoDB picks such an index as the clustered one.

System variables¶

`expand_fast_index_creation`¶

Option	Description
Command Line:	Yes
Config file	No
Scope:	Local/Global
Dynamic:	Yes
Data type	Boolean
Default value	OFF

When set to ON, InnoDB may drop eligible non-unique secondary indexes for the data-copy phase of rebuild-style ALTER TABLE and OPTIMIZE TABLE, then recreate those indexes with the sorted bulk build described in What fast index creation is.
